This product is no longer available.

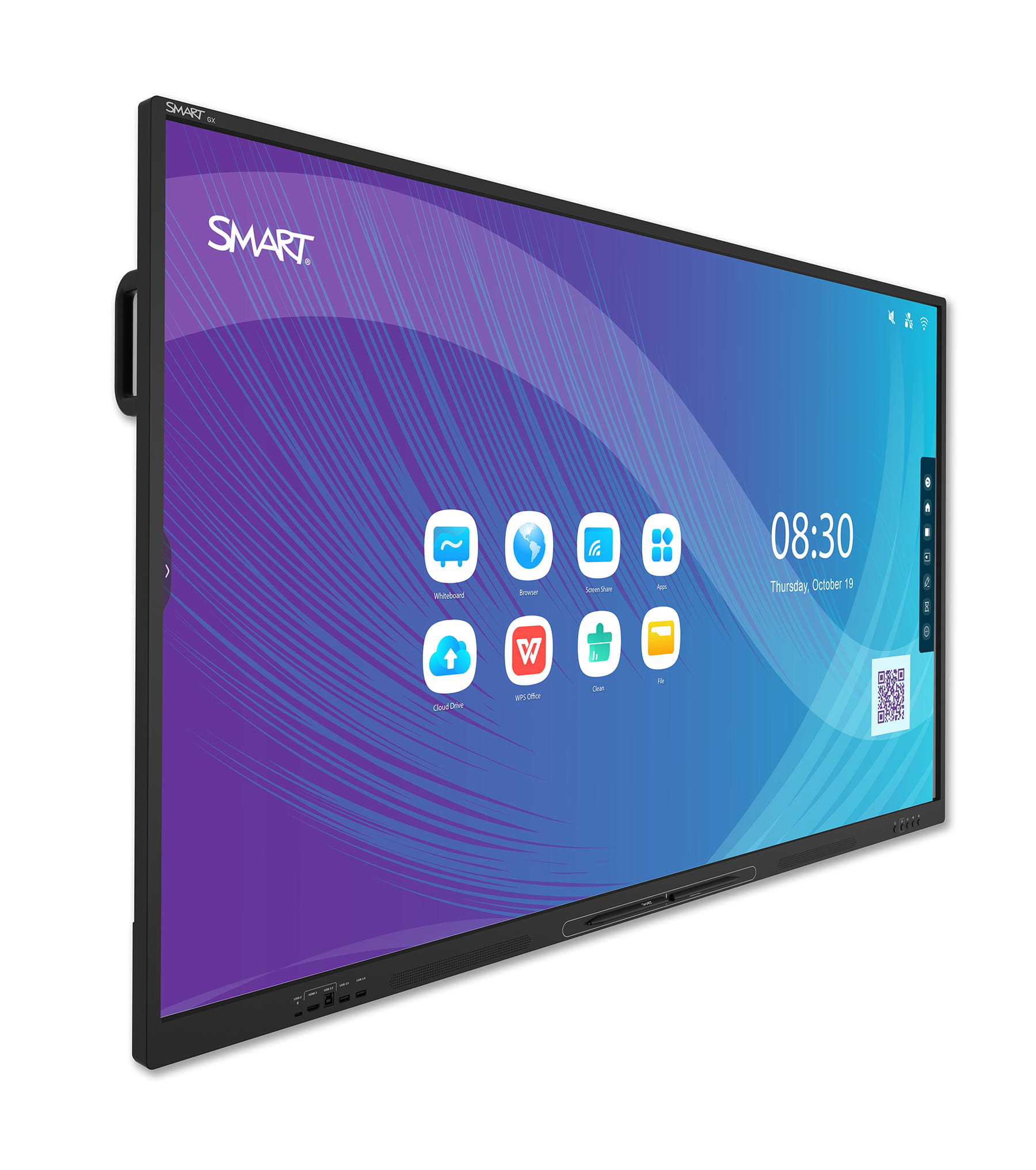

SMART Board GX086 V2 Emb.OS/Ed (3Y)
Item code
SBID-GX186-V2
EAN-code
0628012402546
Solutions
Interactive / Touch
Downloads
Click here for the downloads
Are you interested in purchasing this product?
Highlighted functionality
Specifications
SMART GX series
*Please note: no wall bracket is included with this item.
The better basic display
Connect and engage teams affordably without compromising on the benefits offered by a SMART™ display.
The SMART GX Series delivers reliable interactivity and powerful collaboration tools at an affordable price. Thanks to an embedded Android system and the simplicity of SMART ink, team engagement is enhanced in ways you could only dream of before.
Technical details
USB connector type
USB Type-A,USB Type-B
LED backlighting type
LED
Number of simultaneous touchpoints
20
DisplayPort version
1.2
Ambient light sensor
Y
OPS slot
1
Wall mountable
Yes
Display
Display diagonal
86 "
Display resolution
3840 x 2160 pixels
Display brightness
400 cd/m²
HD type
4K Ultra HD
Response time
8.0 ms
Viewing angle, horizontal
178.00 °
Viewing angle, vertical
178.00 °
Maximum refresh rate
60 Hz
Native aspect ratio
16:9
Touchscreen
Yes
Anti-glare screen
Yes
LED backlight
Yes
Audio
Number of built-in speakers
2
Built-in speaker(s)
Yes
Ports & interfaces
Ethernet LAN
Yes
HDMI ports quantity
3
Ethernet LAN data rates
1000 Mbit/s
Wi-Fi
Yes
HDMI version
2.0
Ethernet LAN (RJ-45) ports
2
DisplayPorts quantity
1
Total number of outputs
4
HDMI ports
3
Displayport ports
1
Weight & dimensions
Width
1954.00 mm
Depth
89.00 mm
Height
1152.00 mm
Weight
66000.000 g
Power
Power consumption (typical)
119.00 W
Power consumption (standby)
0.50 W
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Operational conditions
Operating temperature (T-T)
0 - 35 °C
Operating relative humidity (H-H)
20 - 80 %
Storage temperature (T-T)
-10 - 60 °C
Other features
Mean time between failures (MTBF)
50000 h
Display technology
LED
Headphone connectivity
3.5 mm
USB 2.0 ports quantity
3
Bluetooth
Yes
Bluetooth version
5.0
Design
Product design
Interactive flat panel
Product colour
Black
VESA mounting
Yes
Panel mounting interface
800 x 400 mm
Certification
ETL, FCC, ISED, TSCA, CONEG Packaging, Proposition 65, CE, UKCA, LVD, CB, EMCD, RED, REACH, RoHS, Battery, WEEE, Packaging, POP, Ecodesign, RCM
Performance
HDCP
Yes
Packaging data
Remote control included
Y
Batteries included
Yes
Cables included
AC,USB Type-A to USB Type-B
Manual
Y
Quick start guide
Yes
Package width
2213 mm
Package depth
160 mm
Package height
1398 mm
Package weight
95000 g
Computer system
Operating system installed
Android 11
Packaging content
Number of stylus pens
2
HDMI output ports quantity
HDCP version
1.4/2.2
Quantity per pack
1 pc(s)
