This product is no longer available.

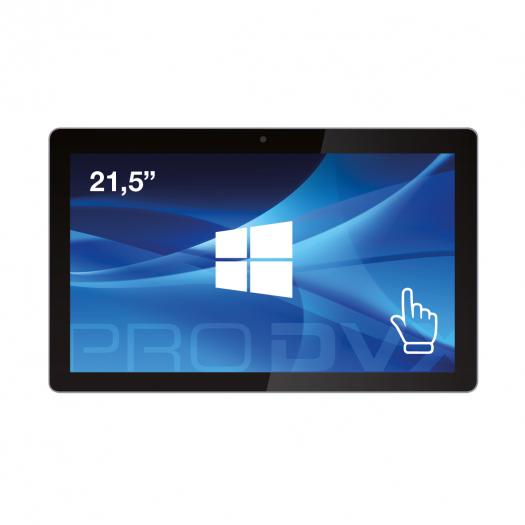

ProDVX PPC24/K75A Panel PC
Item code
50038024.240
Solutions
Office Monitors, Interactive / Touch
Downloads
Click here for the downloads
Are you interested in purchasing this product?
Related products
Highlighted functionality
Specifications
There is no description available at this time.
Technical details
Brightness
250 cd/m²
Wall mountable
Yes
Weight (max)
8 KG kg
Display
Display diagonal
24 "
Display resolution
1920 x 1080 pixels
Display brightness
250 cd/m²
HD type
Full HD
Contrast ratio (dynamic)
16:9
Screen shape
Flat screen
LED backlight
Yes
Touchscreen
Yes
Touch technology
True-Flat PCAP Touch
Aspect ratio
16:9
Audio
Built-in speaker(s)
Yes
Number of loudspeakers
2.0
RMS rated power
6.0 W
Audio system
interne luidspreker (2x 3W)
Ports & interfaces
Ethernet LAN (RJ-45) ports
2
Audio output
1
USB 2.0 ports quantity
4
Headphone outputs
1
Microphone in
Y
DVI ports
1
Weight & dimensions
Width
588.00 mm
Depth
50.00 mm
Height
365.00 mm
Weight
8000.000 g
Keyboard dimensions (WxDxH)
588 x 50 x 365 mm mm
Power
AC adapter power
90 W
Operational conditions
Operating temperature (T-T)
0 - 35 °C
Storage temperature (T-T)
-20 - 60 °C
Storage relative humidity (H-H)
20 - 85 %
Network
Ethernet LAN
Yes
Bluetooth
Yes
Wi-Fi standards
IEEE 802.11b,IEEE 802.11g,IEEE 802.11n
Bluetooth version
4.0
Certificates
Certification
EMC & Safety Medical
Other features
Wi-Fi
Yes
DVI port
Yes
Design
Product colour
Black
Housing material
Die Casting Aluminum
Performance
Product type
PC
Recommended usage
24 / 7
Storage
Number of storage drives supported
1
Processor
PCI Express slots version
2.0
Processor family
Intel Celeron
Processor model
J1900
Processor frequency
2.00 GHz
Processor cores
4
Processor boost frequency
2.42 GHz
Processor cache
2 MB
Processor threads
4
Processor cache type
L2
Processor socket
BGA1170
Processor lithography
22 nm
Processor operating modes
32-bit,64-bit
Stepping
B3
Processor codename
Bay Trail
Thermal Design Power (TDP)
10.0 W
Processor series
Intel Celeron Processor J1000 series for Desktop
Maximum number of PCI Express lanes
4
PCI Express configurations
1x4
Tjunction
105 °C
Conflict-Free processor
Y
Maximum internal memory supported by processor
8 GB
Memory types supported by processor
DDR3L-SDRAM
Memory clock speeds supported by processor
1333 MHz
Memory channels supported by processor
Dual
ECC supported by processor
N
Memory
Memory clock speed
1333 MHz
Memory slots
1
Memory slots type
SO-DIMM
Maximum internal memory
8 GB
Internal memory type
DDR3L
Video
On-board graphics card model
Intel HD Graphics
On-board graphics card
Yes
Software
Operating system installed
N
Multimedia
Built-in camera
Yes
Graphics
On-board graphics card base frequency
688 MHz
On-board graphics card dynamic frequency (max)
854 MHz
Number of displays supported (on-board graphics)
2
Processor special features
Intel vPro Technology
N
Intel® Wireless Display (Intel® WiDi)
No
Enhanced Intel SpeedStep Technology
Yes
Intel® Quick Sync Video Technology
Yes
Intel® Insider™
No
Intel® InTru™ 3D Technology
No
Intel® AES New Instructions (Intel® AES-NI)
No
Intel 64
Yes
Execute Disable Bit
Yes
Processor package size
25 mm
Processor code
SR1SC
CPU configuration (max)
1
Embedded options available
Yes
Graphics & IMC lithography
22 nm
Intel Virtualization Technology for Directed I/O (VT-d)
No
Intel Identity Protection Technology version
0.00
Intel Stable Image Platform Program (SIPP) version
0.00
Intel Virtualization Technology (VT-x)
Y
Intel FDI Technology
No
Intel Rapid Storage Technology
No
Intel® Turbo Boost Technology
N
Intel® Hyper Threading Technology (Intel® HT Technology)
N
Intel® Anti-Theft Technology (Intel® AT)
N
Image sensor
Total megapixels
5.00 MP
On-board graphics card family
Intel HD Graphics
Mini PCI Express slots
1
Physical Address Extension (PAE)
36 bit
Intel Small Business Advantage (SBA) version
0.00
Processor ARK ID
78867
